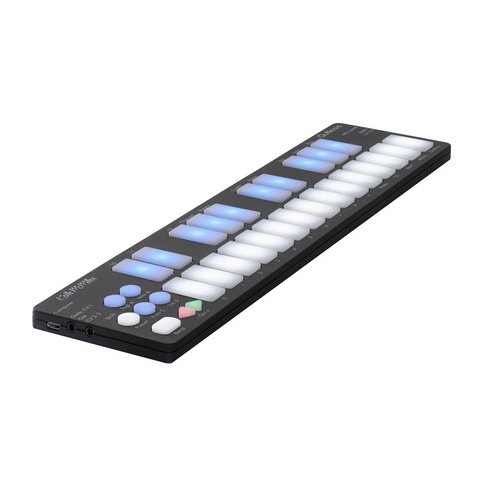

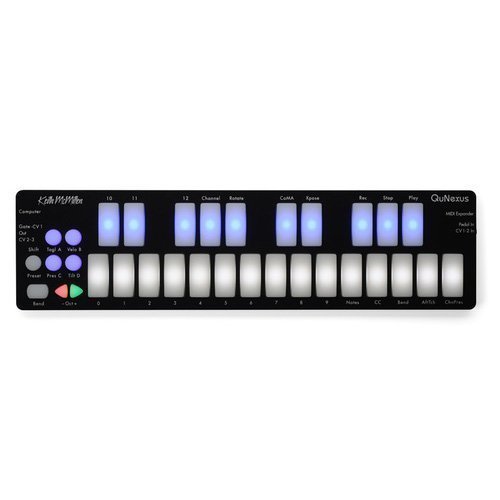

QuNexus Keith McMillen Instruments – KMI

תיאור

מפרט טכניControllers•Keyboard: 25 LED backlit keys with pressure and tilt sensitivity•Pitch bend pad•Octave up/down buttons•5 function buttonsDimensions325mm x 84mm x 11mmWeight345gConnections•Micro-USB•Mini-USB•3 3.5mm TRS connectors (stereo)Power Source•USB bus power•USB power supply (not included)Power Consumption~150mA max draw @ 5VIncluded AccessoriesMicro-USB cable (1m, USB 2.0)Octave Shift Range-2 to +3 octavesVelocity Curves•Linear•Logarithmic•Sine•Cosine•Exponential•Inverted•2 Customizable User CurvesData TransmittedClass-compliant MIDI over USB•MIDI over 5-pin DIN (via KMI Expander)•Control VoltageControl Voltage RangeOutputs: 0V – 5.2V•Inputs: 0V – 5.0V•CV Pitch Output Modes1V per octave•1.2V per octave•Hz per VoltSystem Requirements (Mac) (Software Editor)Mac OS 10.5 or later •Intel Core 2 Duo processor or greater •50MB free hard disk space•System Requirements (Windows) (Software Editor)Windows 7 or greater •Intel Core 2 Duo processor or greater •50MB free hard disk space•
