כרטיס קול 18 כניסות

תיאור

U108 PRE

U108 PRE is a special USB audio recording interface providing a solution for a very basic requirement: connecting a lot of professional microphones for simultaneous multichannel recording at one time.

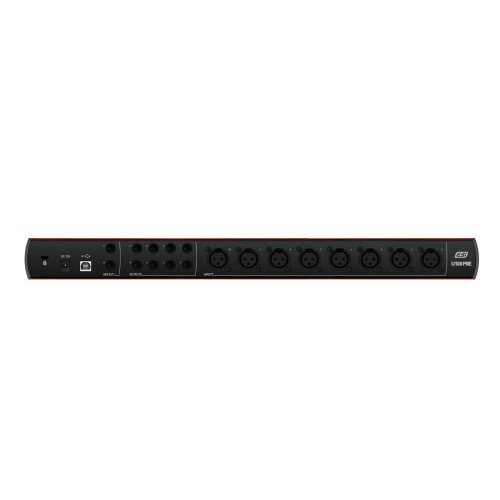

U108 PRE provides a total of 10 high quality professional microphone preamps. Two XLR connectors are on the front panel, the others on the rear panel of the device. For all separate preamps, +48V phantom power can be enabled when needed and the input level can be adjusted separately for each channel. The input level is also displayed via LEDs on the front panel. Of course you can use all input channels simultaneously. In addition, there are two alternatively usable Hi-Z instrument inputs for electric guitars. For playback, 8 independent line outputs and a separate mix output (via the integrated monitor mixer) are provided.

U108 PRE provides drivers that work with very low latency – with support for WDM, ASIO 2.0 and CoreAudio, based on our EWDM- and DirectWIRE-Technology. That means that the unit can be used wih all common applications on both Mac and PC. With the bundled software you can start using it right away and simply start working out of the box.

U108 PRE is the perfect solution for multichannel recording when using a multiple number of microphones!

Features

10 input / 8 output 24-bit / 96kHz USB 2.0 Hi-Speed 24-bit Audio Interface

10 professional microphone preamps with XLR input and +48V phantom power support

2 Hi-Z high performance instrument inputs with 1/4″ connector

8 line outputs with balanced 1/4″ TRS connectors

adjustable headphone output with 1/4″ stereo phone connector

separate stereo mix output with integrated monitoring mixer controlled on front panel

ADC with 107dB(a) dynamic range

DAC with 112dB(a) dynamic range

supports up to 24-bit / 96kHz

powered by included DC power supply

supports Windows 7, Windows 8.1 and Windows 10 with ASIO 2.0, MME, WDM and DirectSound incl. DirectWIRE support

supports Mac OS X (10.7 and above) via CoreAudio USB audio driver

includes license of Deckadance LE from Stanton

includes Bitwig 8-Track digital audio workstation software

includes license of inTone 2 ESI Edition from Audified

dimensions roughly 45.0cm x 14.5cm x 4.5cm
