כרטיס קול חיצוני

תיאור

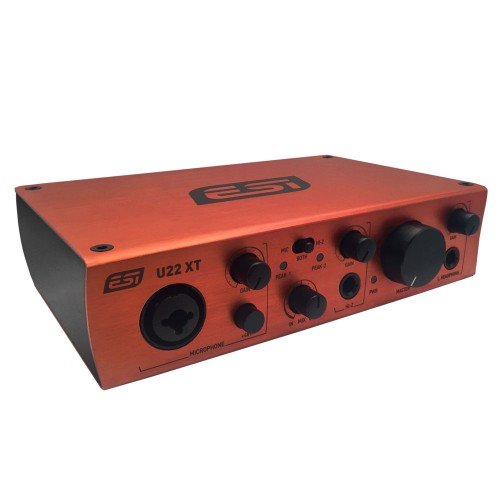

U22 XT offers a maximum of flexibility as fully bus powered USB device with pristine professional 24-bit audio quality.

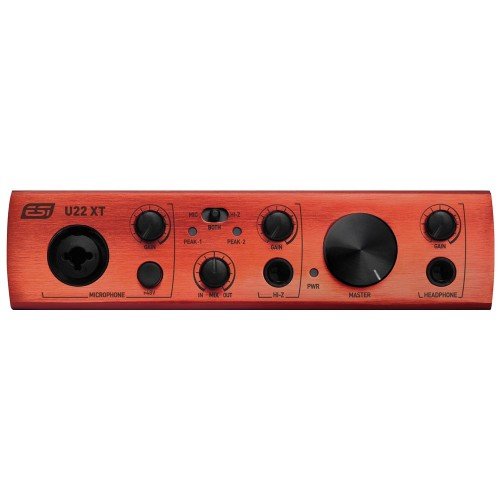

The interface features 2 analog input and 2 analog output channels with RCA connection, a microphone preamplifier with XLR input and support for +48V phantom power, a Hi-Z instrument input for guitars, a high quality headphone output and TRS line outputs. Master and headphone volume as well as monitoring are controlled on the front panel.

On the software side, U22 XT provides low latency drivers with support for WDM, ASIO 2.0 and CoreAudio based on our EWDM and DirectWIRE technology.

Included with U22 XT is the Bitwig 8-Track software, the trim and effective digital audio workstation to start producing, performing, and designing audio like a pro. With Bitwig 8-Track, you can start working right out of the box without other additional software. Record and arrange, improvise and perform, or do it all at once, with this professional solution developed by musicians, for musicians.

If you’re looking for a really powerful USB audio solution for your PC or Mac to start working out of the box, then U22 XT is for you!

Features

2 input / 2 output 24-bit / 96kHz USB 2.0 Full Speed 24-bit Audio Interface

microphone preamp with +48V phantom power support

Hi-Z instrument input with 1/4″ connector

USB bus powered

max. 24bit/96kHz

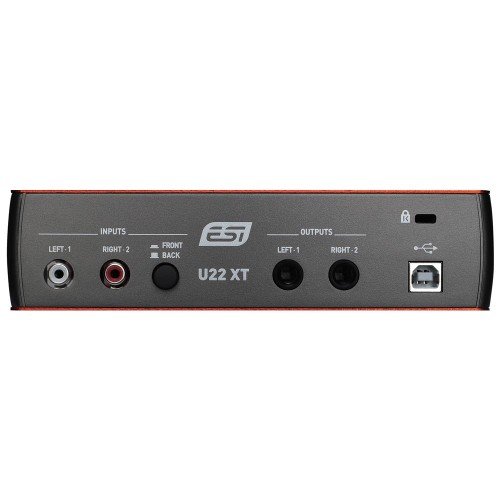

line input with RCA connectors

line output with balanced 1/4″ TRS connectors

headphone output with 1/4″ connector

ADC with 102dB(a) dynamic range

DAC with 108dB(a) dynamic range

input / output monitoring controlled on front panel

master volume control on front panel

supports Windows Vista, Windows 7, Windows 8.1 and Windows 10 with ASIO 2.0, MME, WDM and DirectSound incl. DirectWIRE support

supports Mac OS X (10.7 and above) via the native CoreAudio USB audio driver from Apple (no driver install required)

includes license of Deckadance LE from Image-Line Software

includes Bitwig 8-Track digital audio workstation software

dimensions roughly 17.5cm x 12.0cm x 4.5cm
