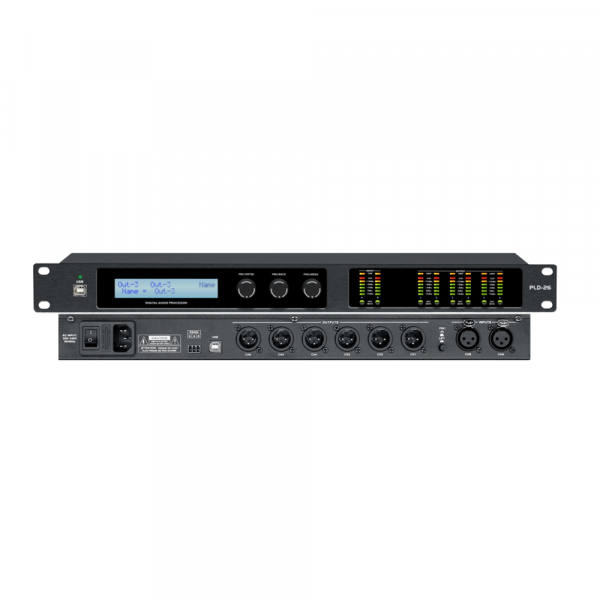

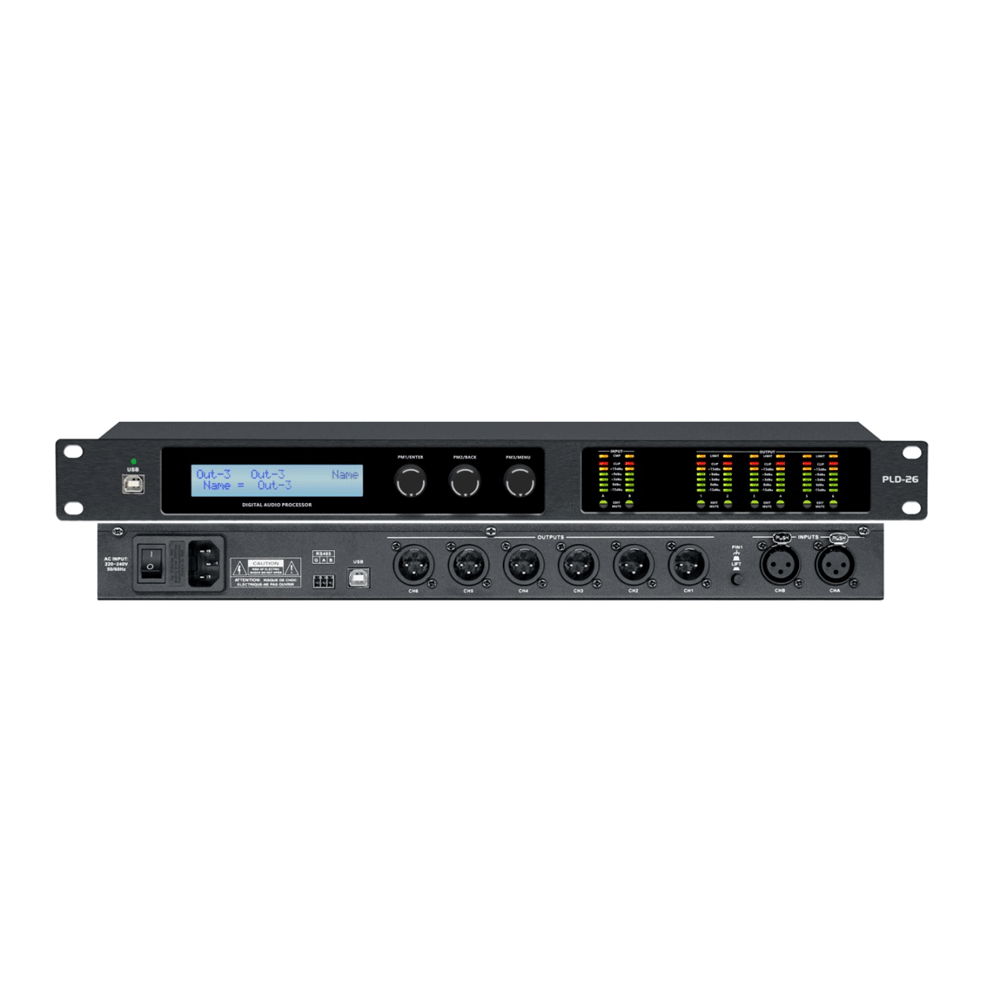

Audio Processor PLD-26

תיאור

Audio Processor / Lititer / Crossover

ציוד מקצועי לאנשי הגברה

עם חיבור למחשם ושליטה ממחשב

• טווח תדרים רחב במיוחד
• איכות סאונד מעולה
• 2 כניסות  XLR
• 6 יציאות XLR
• צג לד דיגיטלי

Model: PLD-26



Technical Parameter



Input: two – channel electronic balance

Impedance: ＞10 k ohms

Maximum input level: +12dBu



Output: six – channel electronic balance

Impedance: ＜80 ohms

Maximum output level: +18dBu



Frequency response: ± 0.5dB 20Hz-20KHz

S/N: ＞100 dBA

THD + N: ＜0.005%

Parametric equalizer: input 11 segments, output 7 segments

High pass (low cut) and low pass (high cut) filters

Frequency range: 20Hz ~ 20KHz, 1/36 octave

Filter slope: -6dB, -12dB, -18dB, -24dB, -36dB, -48dB.

Type selection: Butterworth, Linkwitz-Riley, Bessel

12dB Variable Q value.



Noise gate

Threshold value: -90~ -60dB

Startup time: 1~1000ms

Release time: 1~1000ms



Limiter

Threshold value: -14dB ~16dB, adjusting step distance is 0.2dB.

Startup time ranges from 5 to 200mS.

The release time was 0.1~3S



Connector

Input: 3-pin XLR female socket

Output: 3-pin XLR male socket

Communication port: RS485 USB

Power supply: AC220V~240V @ 50/60Hz

Power consumption: ＜30 watts
