Audio Isolater

תיאור

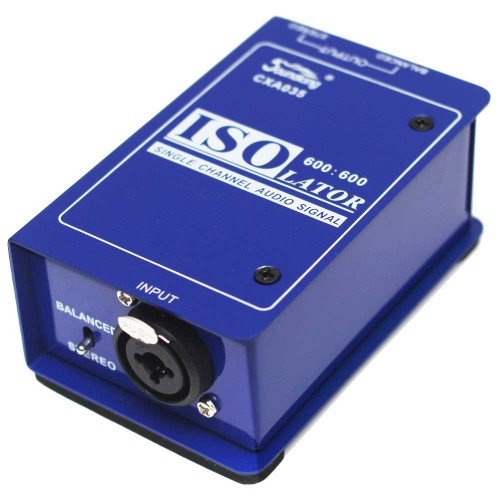

Balanced/unbalanced Audio Isolator

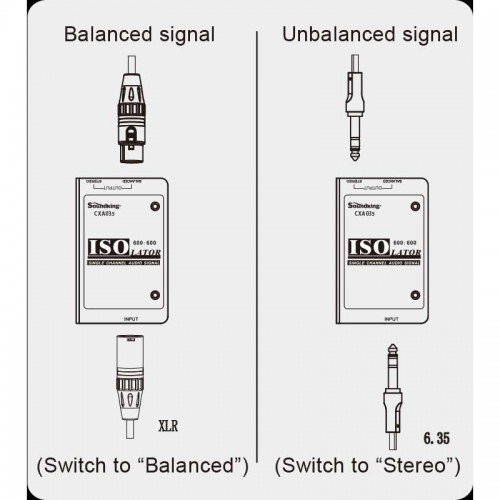

This product can be used to transmit a single balancedunbalanced signal Input end features mied XLR or 6.35socket. while outout end features XLR and 6.35 socketsSignal selection switch is available for signal sourcebalanced or unbalanced). This product can completelysolate the potential difference etween two systems, toavoid the hum interference due to grounding problemsand to protect the input level from the damage of too highpotential difference, so as to realize the safe transmissionof audio signals

Features

> Solid, durable blue painting cold rolled housing;

> Using custom made high quality audio coupler;

> Applicable to balanced and unbalanced signal.

Specifications

Input impedance: 600Ω (AC impedance)

Output impedance: 600Ω (AC impedance)

Balanced signal

Withstand voltage strength: 1000V DC / 1mA / 1sec

Frequency response: 20Hz-20kHz (±0.5dB ref 1kHz)

Fixed loss: < 0.2db (ref 1kHz 2k load) Insulation resistance: DC1000V Isolation voltage: DC 50Hz-60Hz 0V-1250V Unbalanced signal Withstand voltage strength: 500V DC / 1mA / 1sec Frequency response: 50Hz-20kHz (±0.5dB ref 1kHz) Fixed loss: < 0.01%@ 1kHz, 0dBu
