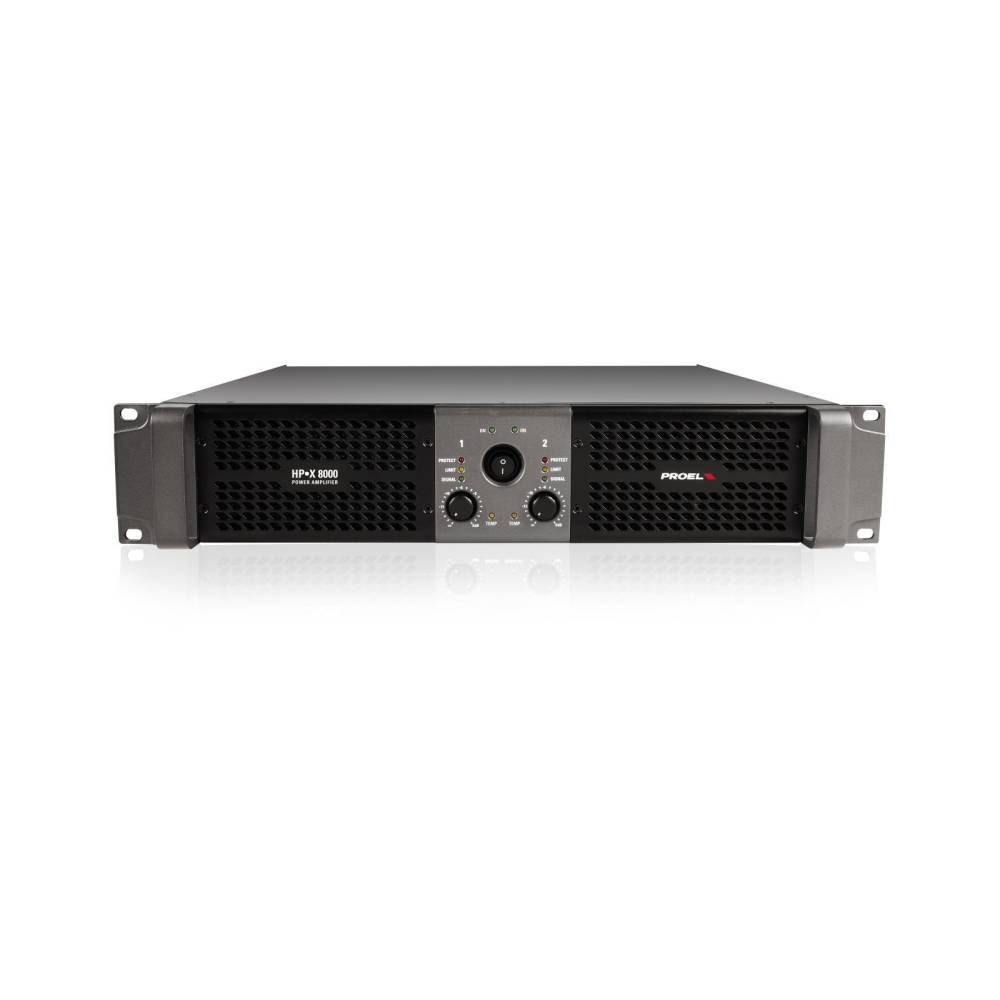

מגבר עוצמה Proel HPX8000 בהספק 2X4000W

תיאור

מגבר איכותי מבית Proel.
למגבר עוצמה של 3900 W ותגובת תדרים של 20 הרץ עד 20 קילו-הרץ.
המגבר שוקל 15.5 קילו.

מפרט טכני:

Power 8 ohm * 1800W
Power 4 ohm * 3200W
Power 2 ohm ** 3900W
Power BRIDGE 8 ohm * 6000W
Power BRIDGE 4 ohm ** 7200W
Output Stage CLASS I
Frequency response (+0/-0.5 dB) 20 Hz – 20 KHz
Input Sensitivity (nominal) 0 dBu / 0.775Vrms: 44 dB
Input Sensitivity (fixed gain) 1.0 Vrms (0 dBV): 42 dB
GAIN (nominal/fixed) +10 dBu/2.45Vrms: 32 dB
Input Connectors / Impedance XLR M (with XLR F LINK), 20 Kohm (balanced), 10 Kohm (unbalanced)

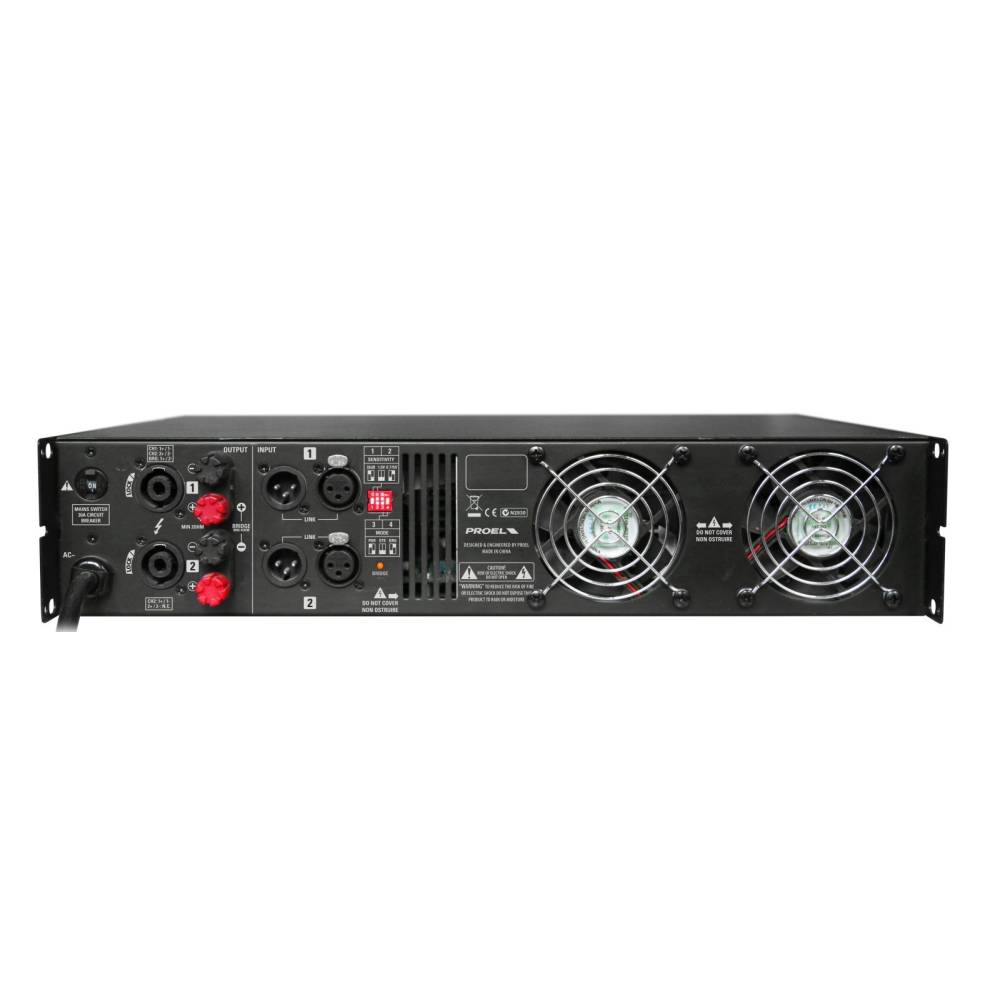

Output Connectors SPEAKON and Binding Post
Damping Factor > 200
Slew Rate > 20 V/uS
S/N Ratio (unweighted) > 85 dB
THD+N < 0.1%
Controls INPUT LEVEL, INPUT SENSITIVITY, STEREO/BRIDGE/PARALLEL
LED Indicators POWER, ON, BRIDGE, SIGNAL, LIMIT, PROTECT, TEMP
Cooling Variable speed DC fan
Protections AC low power, DC, thermal, short circuit, VHF, CLIP limiter, SOFT CLIP limiter
Mains Supply Voltage 230 VAC (±10%) 50/60 Hz or 120VAC (±10%) 50/60 Hz
Maximum Consumption 3200 VA
Rated Consumption *** 800 VA
Standby Consumption 120 VA
Dimensions (W x H x D) 483 x 89 x 451 mm – 19″ x 3.5″ x 17.7″
Weight 15.5 Kg (34.2 lb)
* RMS both channel THD < 1%
** 40 ms burst
*** Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.
