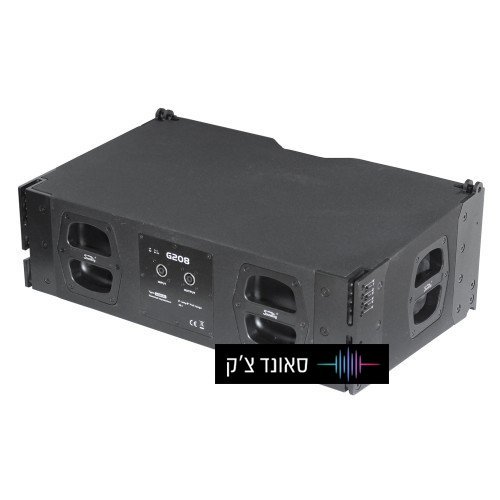

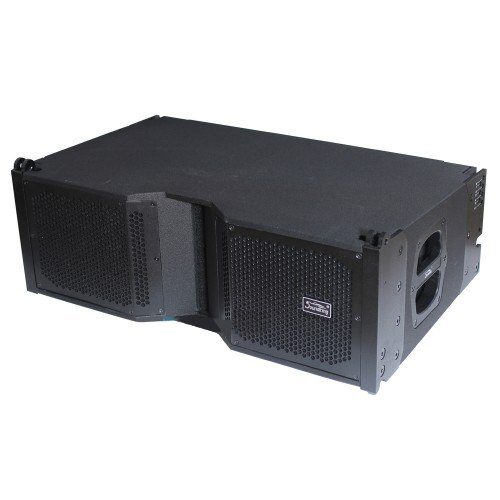

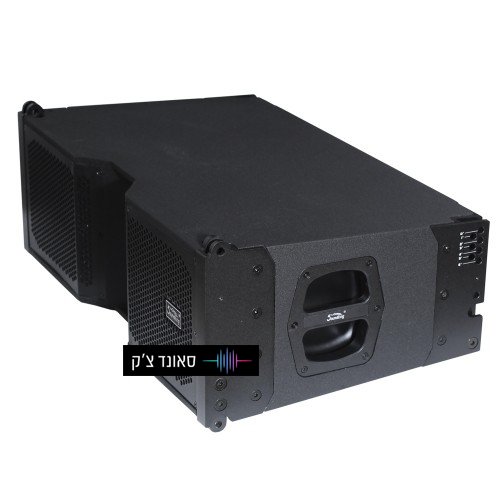

Passive Line Array 8

1000W Woofers + 150W Driver

Two-way line array cabinet Type

65Hz~19kHz (-10dB) ,80Hz~18kHz (+- 3dB) Frequency Response

֯90 Horizonal Coverage(-6dB)

֯6 Vertical Coverage(-6dB)

LF : 96dB , HF : 108dB Sensitivity (1W@1m)

2*8″ (203mm)/ 2″ voice coil LF/MF

2*1.75″ (44mm) compression driver/NdFeB Magnet HF

LF : 16Ω , HF : 16Ω Rated Impedance

LF : 300W (continuous) , 1200W (peak) Rated Power

HF : 80W (continuous) , 320W (peak) Max SPL(@1m)

LF : 127dB , HF : 133dB

250Hz , 2kHz (external) Crossover

722*260.4*440 (mm) Dimension (WxHxD)

30kg Weight

֯0 ~ ֯6 each grade ֯ 1 Vertical Dispersion
