מיקסר ברינגר XE-802 Behringer

תיאור

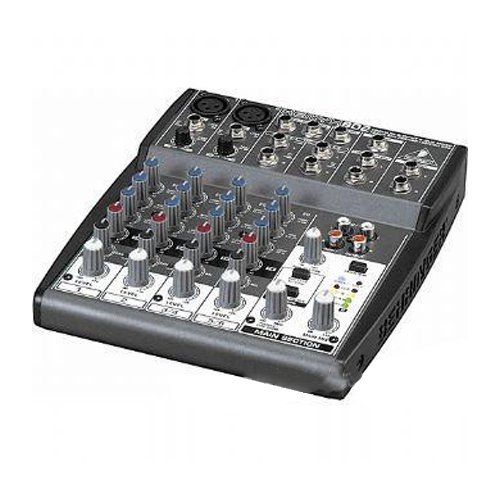

Behringer XENYX 802 – 8 Channel Stereo Output Compact Audio Mixer
From Behringer, the XENYX seriesaudio mixers are designed to provide real-world features and pristine audio fidelity while remaining cost effective and practical.
The XENYX 802 is a compact 8-channel audio mixer that fits within any budget. The mixer features 2 microphone inputs and 6 line level inputs. Inputs 3/4 and 5/6 are stereo paired for use with keyboards, player/recorders and other stereo devices. An additional stereo I/O is provided for connecting Tape and CD devices. The compact 802 is well suited for project recording, home video editing, small PA systems and more.
Key Features
8 Total Input Channels
The XENYX 802 features a total of 6 line inputs on 1/4” Phone connectors and two XLR microphone inputs.
Stereo Inputs
Channels 3/4 and 5/6 feature stereo paired 1/4” phone line inputs for keyboards, recorders and other stereo devices.
Phantom Power
User switchable +48V phantom power is supplied to condenser microphones.
AUX Send / Return
The 802 features stereo AUX send and returns for routing channels to external effects processors, monitors or recording devices.
Compact and Portable
The 802’s ultra compact profile is ideal for the road and easy storage.

Total # Of Inputs
8 Inputs
Mic/Line Inputs
2 Mic: 3-pin XLR
6 Line: 1/4” TRS Phone

Stereo Line Inputs
2 Stereo: L/R Paired 1/4” TRS Phone
channels 3/4 and 5/6

In-Line Inputs/Returns
No

AUX Sends
Single Stereo 1/4” Phone

AUX Returns
Stereo L/R Paired 1/4” Phone

Inserts
No

BUS (Group) Outputs
Stereo Main Only: L/R 1/4” TRS Phone

2 Trk Master I/O
CD/Tape –
Input: L/R RCA Phono
Output: L/R RCA Phono

ALT I/O
No

Monitor Outputs
Phones: 1/4” Stereo

EQ Section
Low: 80Hz +/- 15dB
High: 12kHz +/- 15dB

Solo/Mute
No

Channel Level Control
Rotary Controls

Trim/Gain Control
No

Phantom Power
+48V Phantom

Metering
Stere 4-segment Peak LED meters

Frequency Response
10Hz to 20kHz (-3dB)

Dynamic Range
not specified by manufacturer

Signal-to-Noise Ratio
110dB / 112dB A-weighted

Total Harmonic Distortion (THD)
0.005% / 0.004% A-weighted

Power Supply
13W
USA/Canada 120V~, 60Hz, MXUL5 adapter

Dimensions
1.85 x 7.44 x 8.66” (47 x 189 x 220mm) (HxWxD)
